Installation Instructions

KRUU Photo Booth Basic

Photo booth setup. Easy as pie.

Please note: Leave the photo booth indoors to acclimatize!

  • Only suitable for indoor use!
  • No direct sunlight!
  • The printer is not operational at temperatures below 50 °F and high humidity!

To view this video, you must allow the setting of cookies.

Note on the return

First, please stick the return labels over the shipping labels! You also find your return labels available for download in your online customer portal!

KRUU Photo Booth Basic –included

1. Connect cables

Connect cable A

Cable A & B connects the power supply of the KRUU Photo Booth Basic to the power outlet.

Connect cable G

Cable G connects the KRUU Photo Booth Basic with the selphy printer. Please do not use USB stick and SD card.

Connect Cables - detail view

2. Selphy printer – insert paper

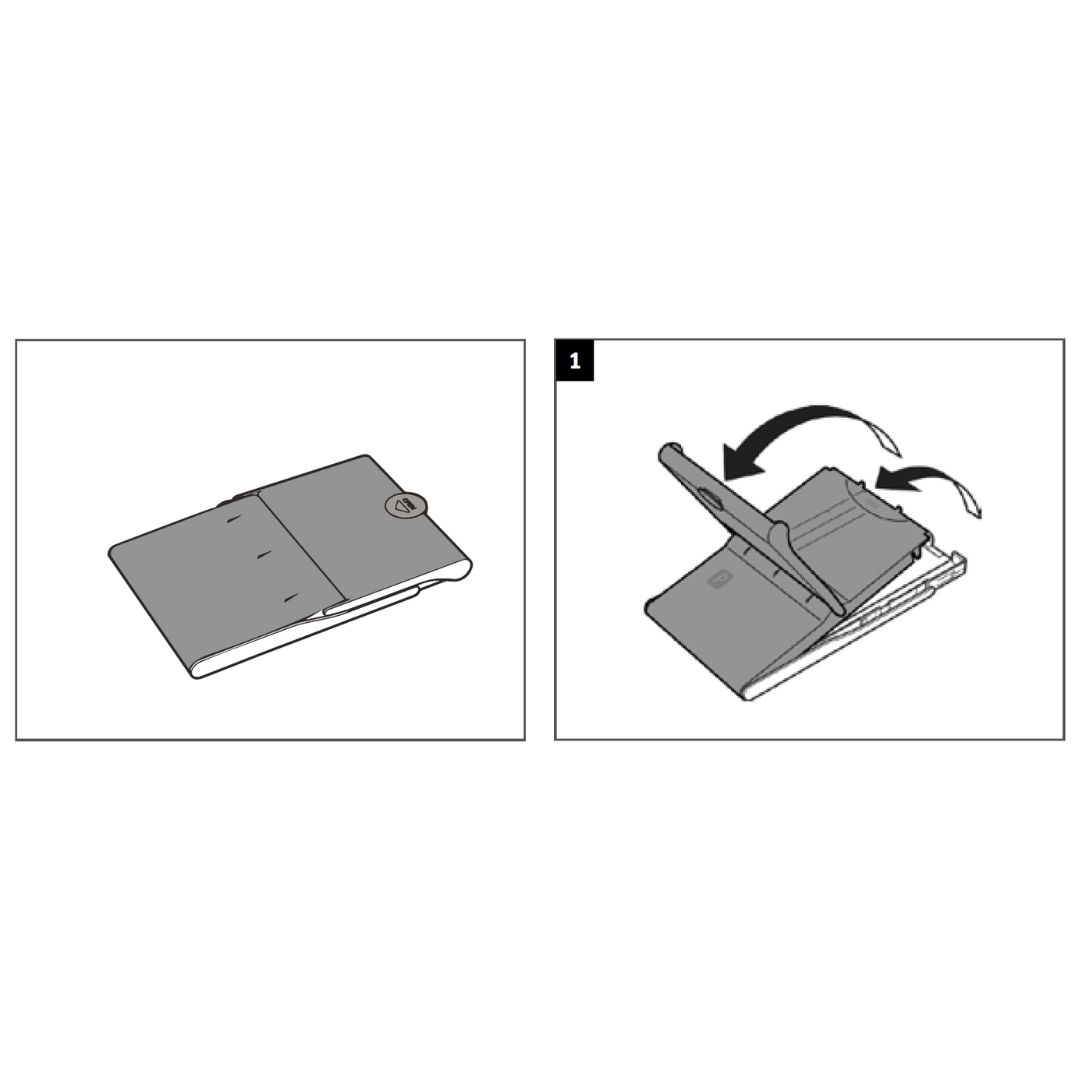

Open the paper bin

Open the paper bin to insert the paper.

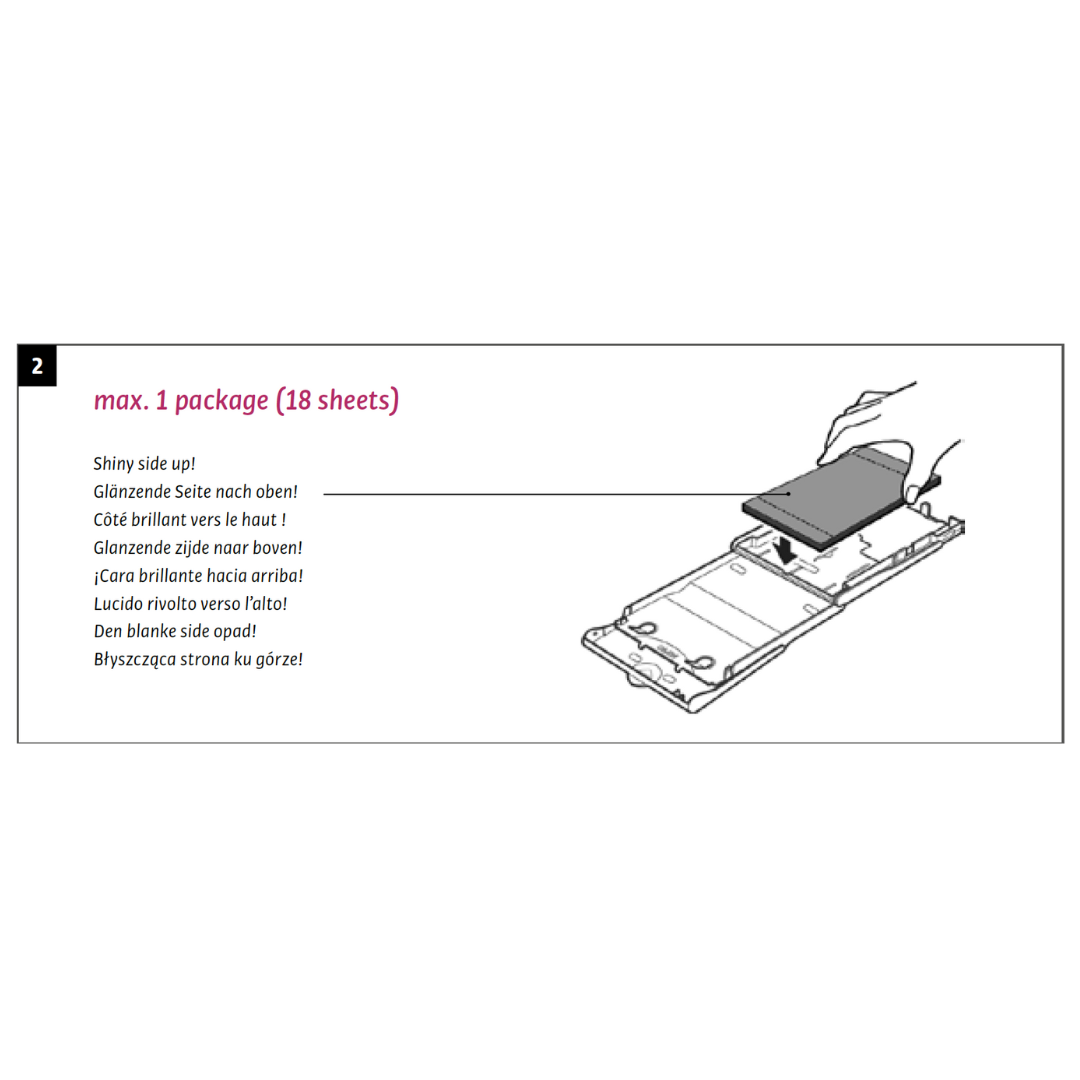

Loading paper

Take a pack of the enclosed paper stock and insert it into the paper bin with the glossy side facing up. Notice! A maximum of 18 sheets (1 pack) may be inserted.

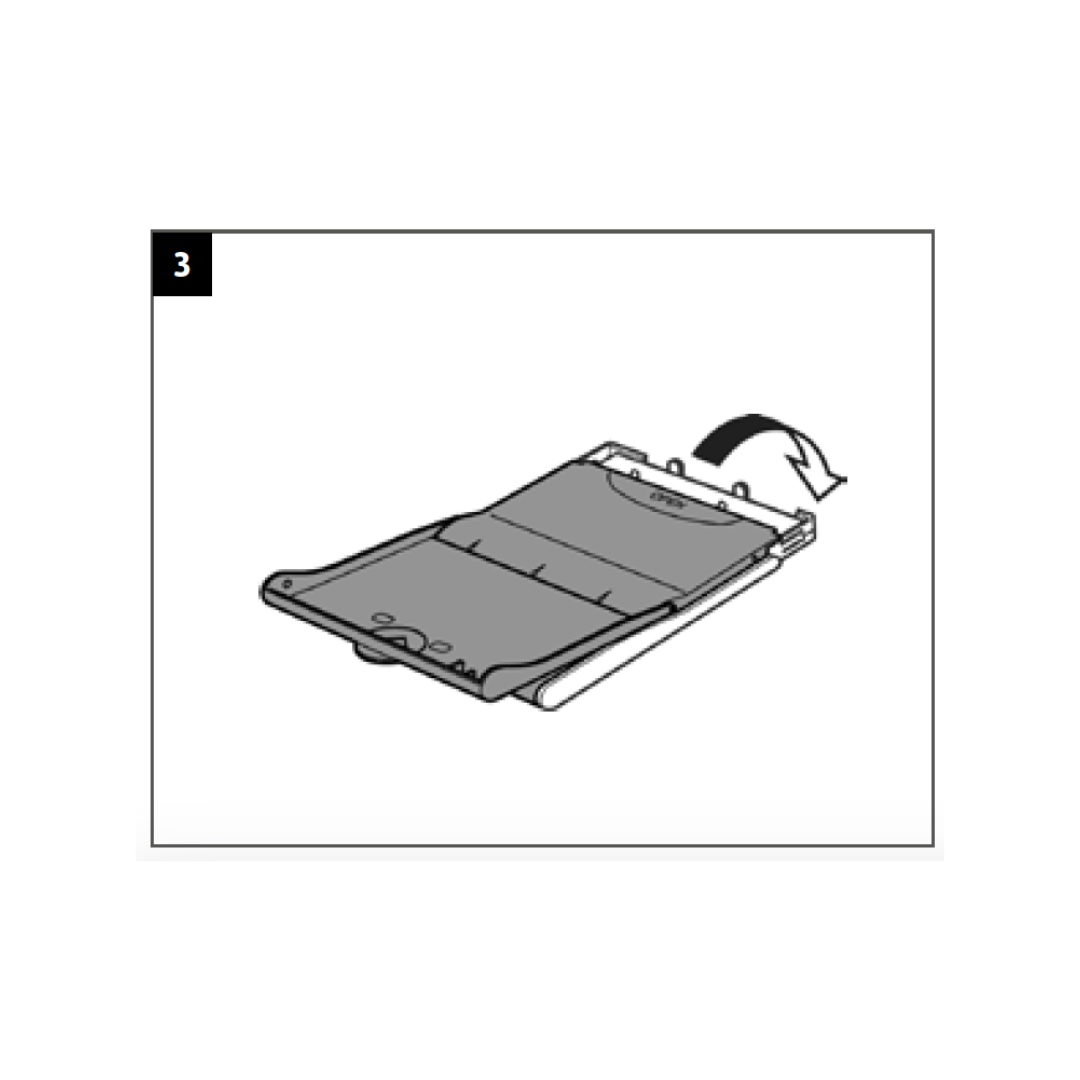

Closing the paper drawer

Close the paper bin. Make sure that the paper tray remains half open.

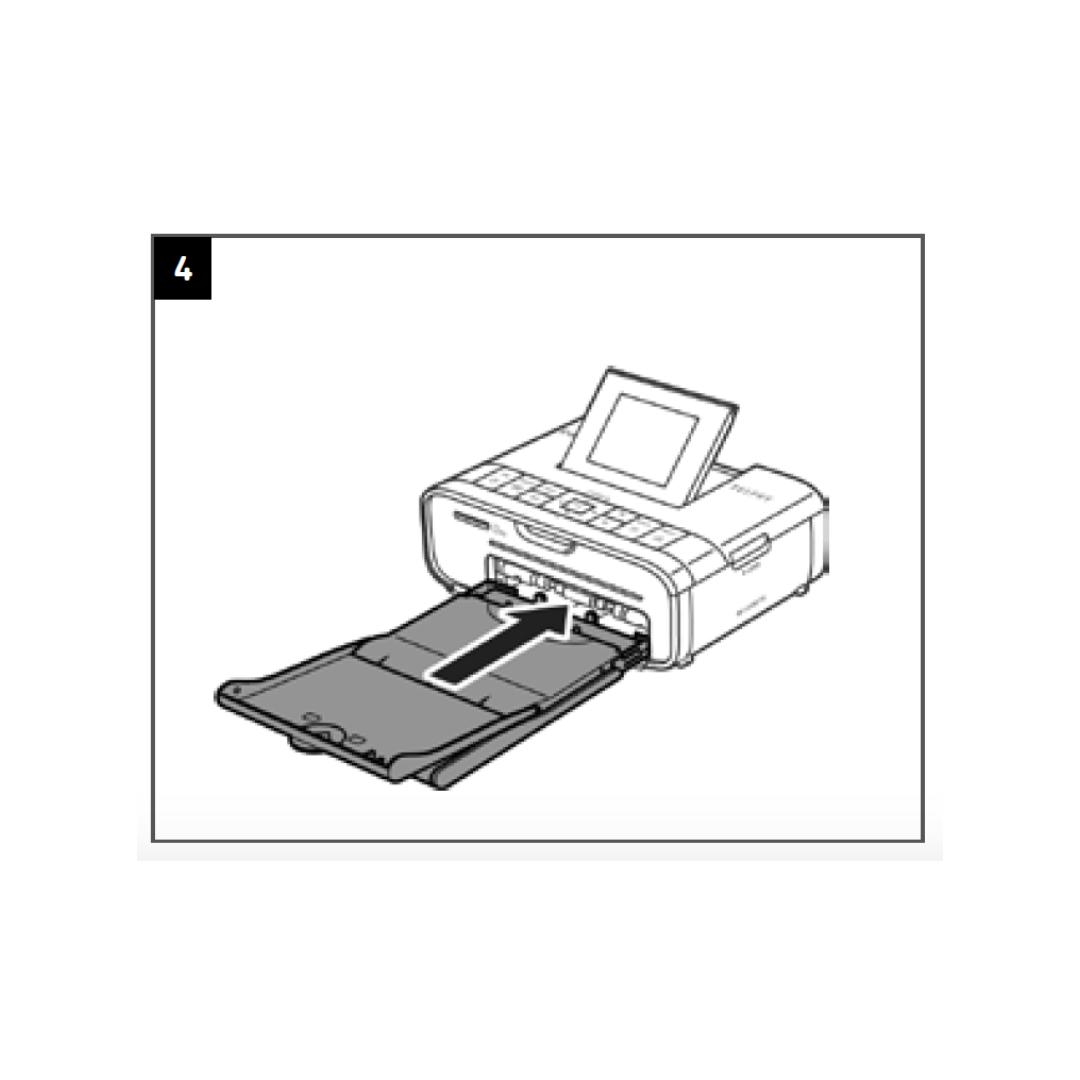

Inserting the paper bin

Insert the paper bin into the selphy printer.

3. Selphy printer – Replacing printer ink

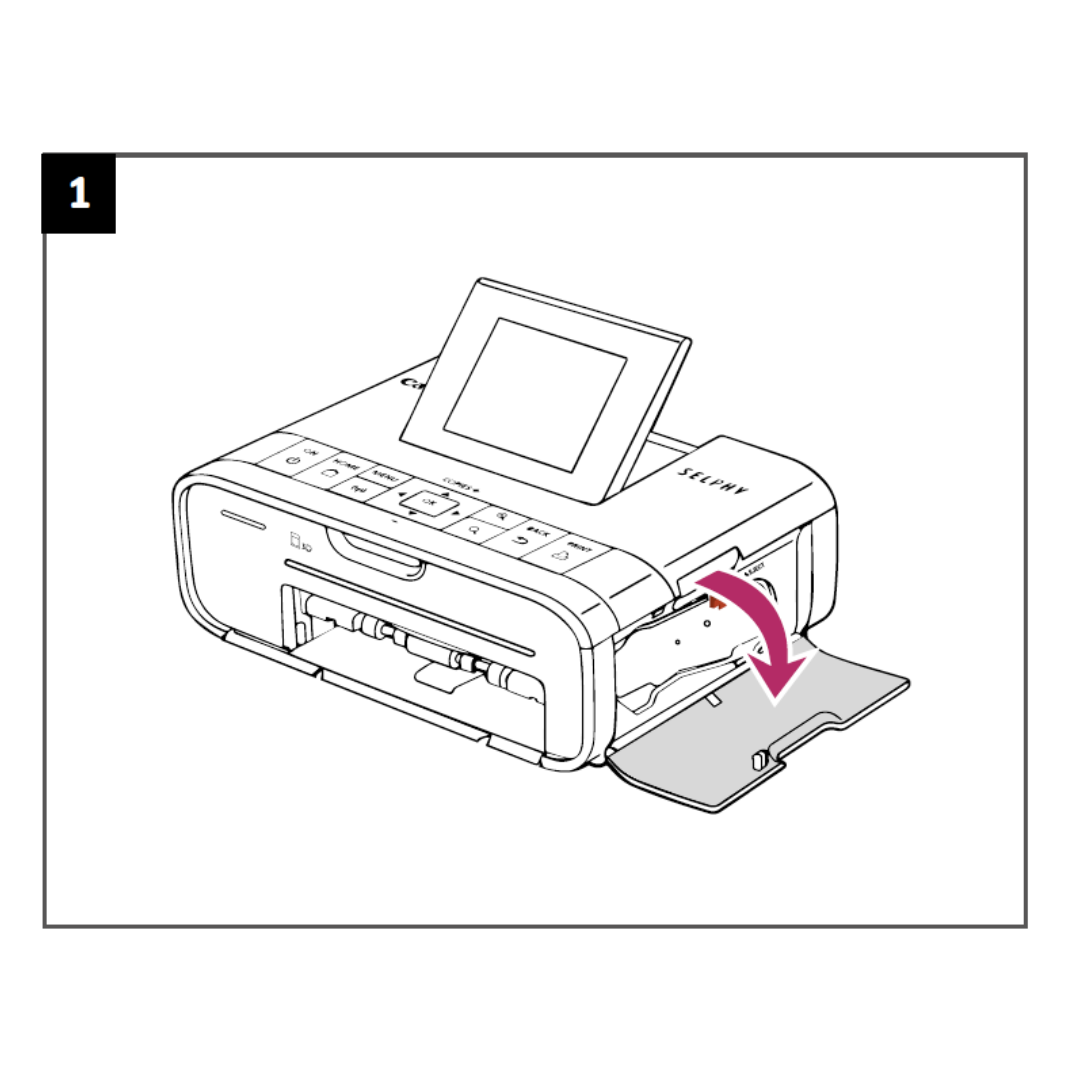

Open the lid of the printer

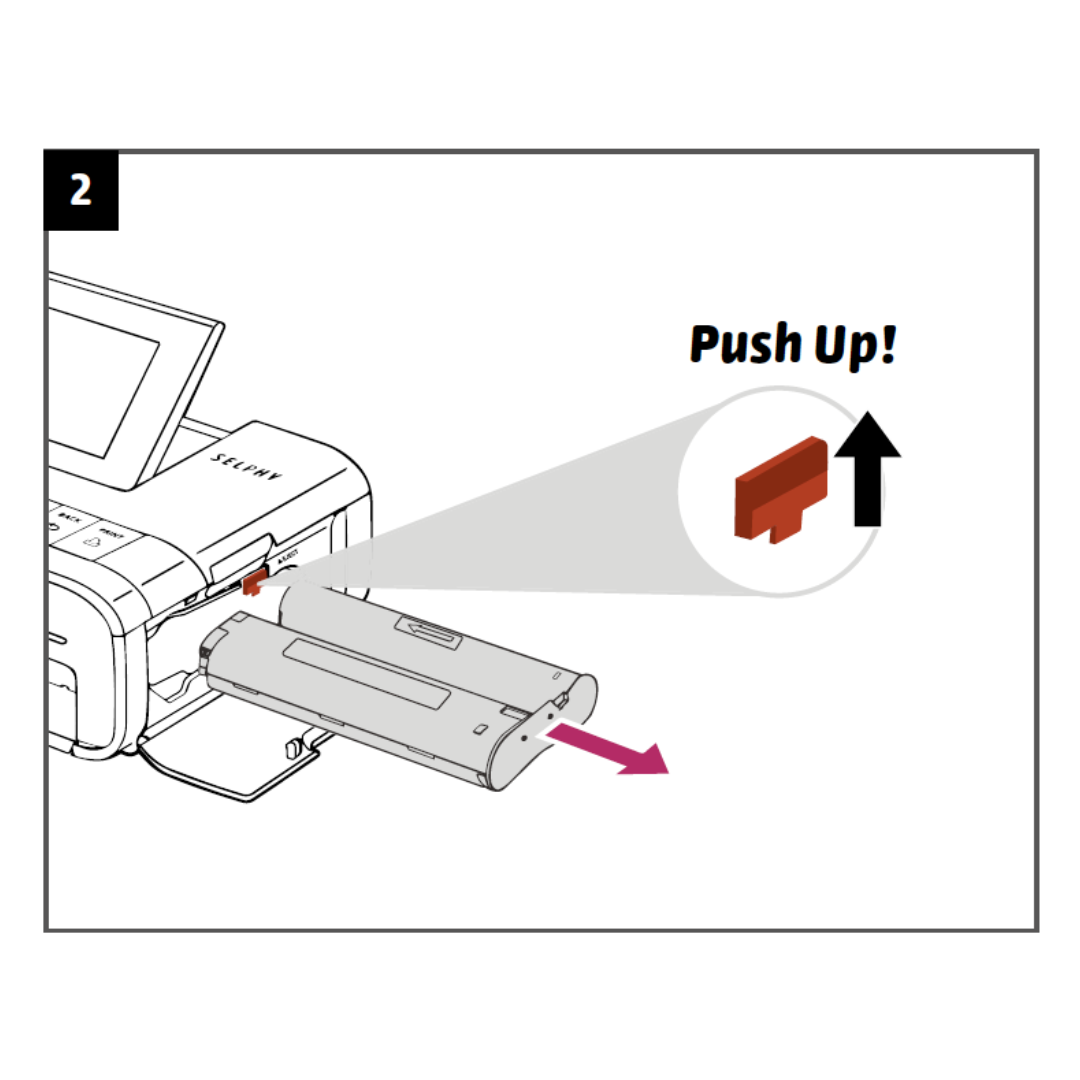

Removing the empty color ribbon

Press the red switch up to remove the ribbon.

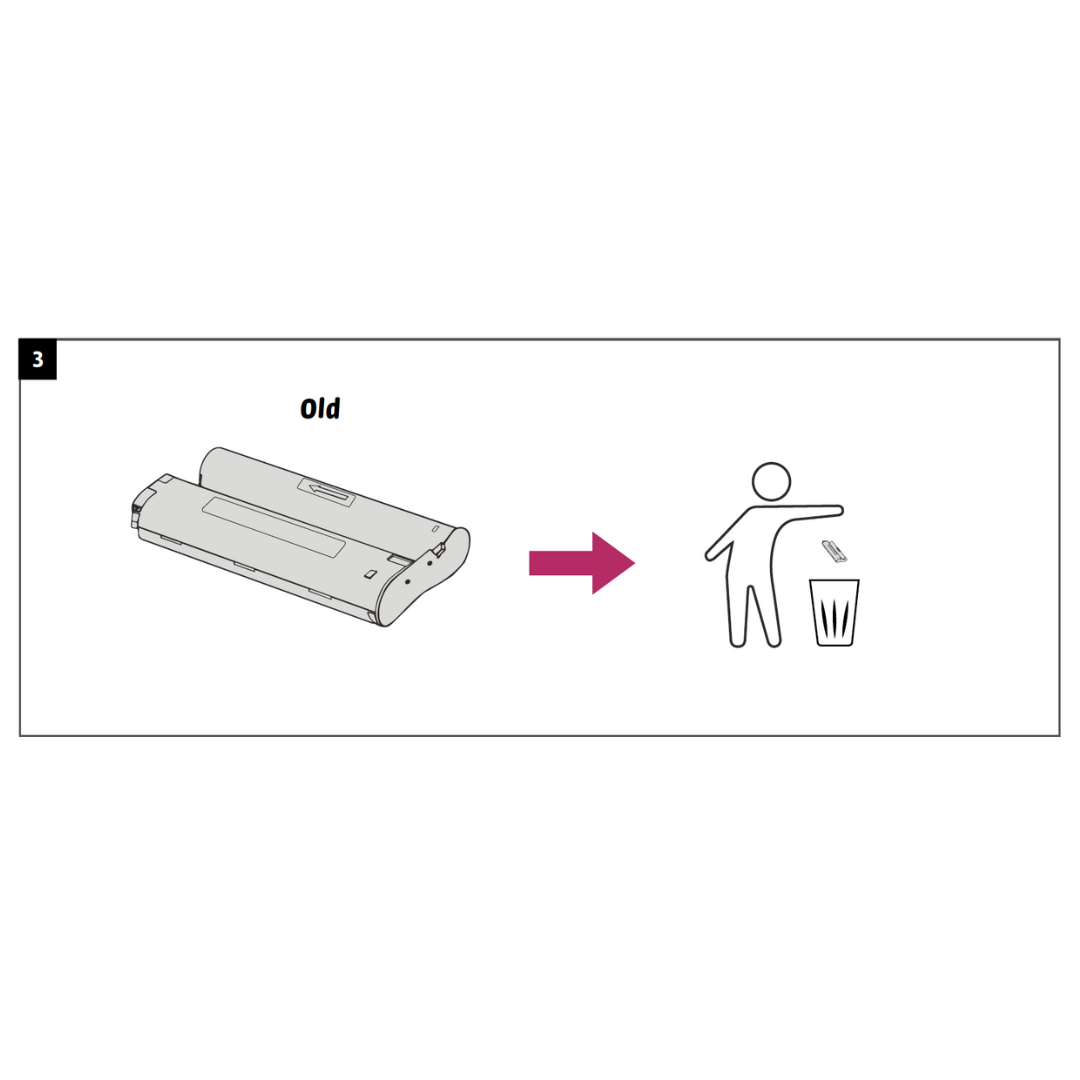

Dispose of the empty color ribbon

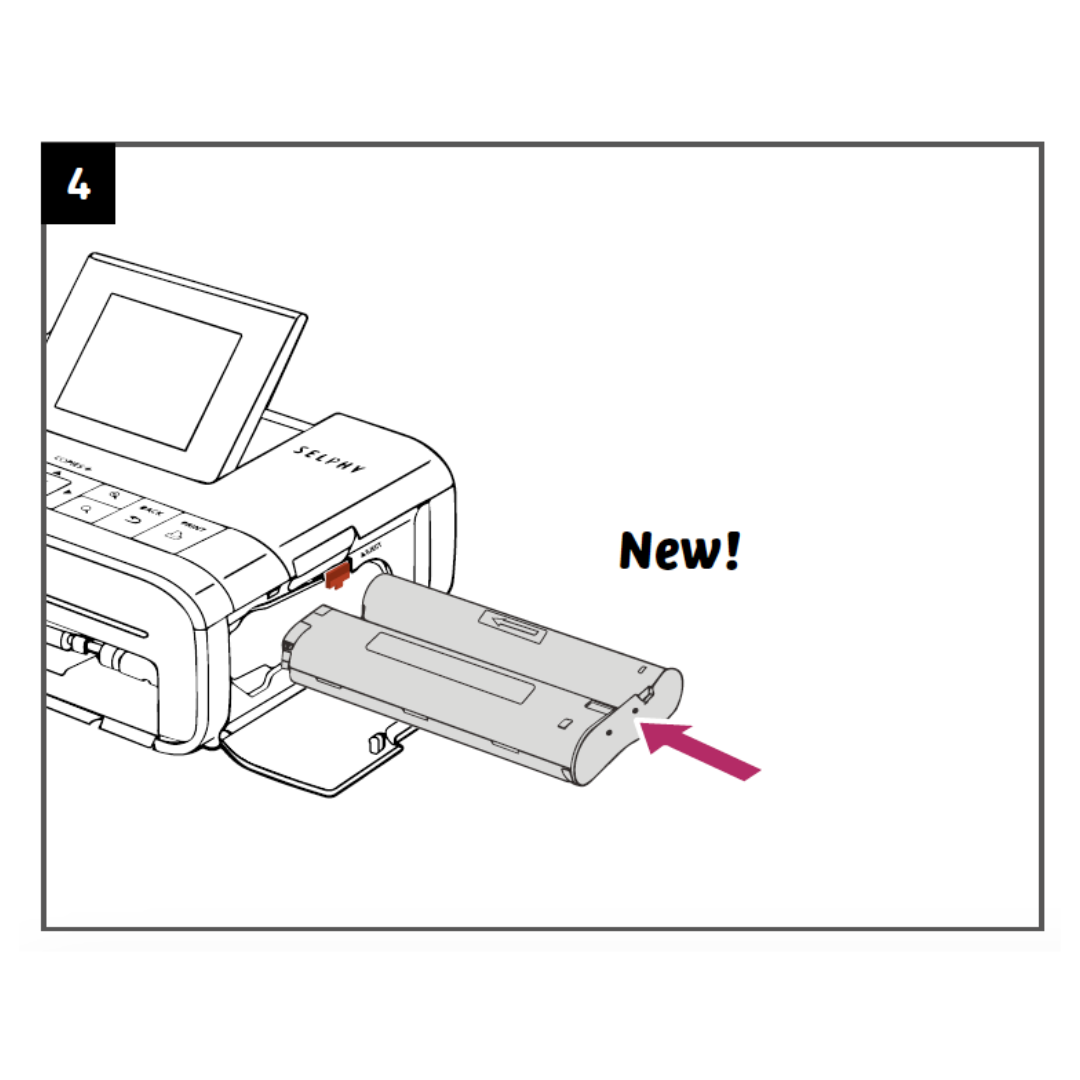

Inserting the color ribbon

Insert the new ribbon and close the lid of the printer.

NOTE

Push On Button for 3s. Do not touch any other key!

4. Our support. At your service.

Call us directly at (833) 659-4004

Just send us an email to support-us@kruu.com

In case of technical questions we are available for you on Friday & Saturday until 9 pm!

5. Safety Precautions

NOTE

For safety reasons, the following precautions must be observed!

Power supply

• This photo booth is designed for 24 VDC 7.5A operation.

• The device must never be connected to a power supply that deviates from the specified voltage values.

• For the use of the KRUU Photobooth it needs a technically faultless and with a residual current circuit breaker fused (RCD/FI), earthed socket. The connections used must be made by a specialist and comply with the current regulations.

Protection class and usage site

The device complies with protection class 1/IP20 – permitted usage site: Indoors (no humid rooms).

WARNING: DANGER TO LIFE!

Never open the casing of the photo booth, power supplies, or the printer to perform any repairs or trouble-shooting of electronic parts. There are live parts in the casing of these devices, which can cause a lifethreatening electric shock if touched!

Canon SELPHY CP 1500

• Be sure to read these instructions in order to operate the product safely.

• Follow these instructions to prevent injury or harm to the operator of the product or others.

Warning

Denotes the risk of serious injury or death.

• Use only power sources specified in this instruction manual for use with the product.

• Do not disassemble or modify the product.

• Do not expose the product to strong shocks or vibration.

• Do not touch any exposed internal parts.

• Stop using the product in any case of unusual circumstances such as the presence of smoke or a strange smell.

• Do not use organic solvents such as alcohol, benzine or paintthinner to clean the product.

• Do not get the product wet. Do not insert foreign objects or liquids into the product.

• Do not use the product where flammable gases may be present. This may cause electric shock, explosion or fire.

• Do not touch the product connected to a power outlet during lightning storms. This may cause electric shock.

• Periodically remove any dust buildup from the power plug and power outlet using a dry cloth.

• Do not plug in or unplug the product with wet hands.

• Do not use the product if the power plug is not fully inserted into the power outlet.

• Do not expose the power plug and terminals to dirt or let them come into contact with metallic pins or other metal objects.

• Do not touch the battery charger or AC adapter connected to a power outlet during lightning storms.

• Do not place heavy objects on the power cord. Do not damage,break or modify the power cord.

• Do not wrap the product in cloth or other materials when in use or shortly after use when the product is still warm in temperature.

• Do not leave the product connected to a power source for long periods of time.

• Do not charge batteries/battery packs at temperatures outside the range of 5 – 40 °C. This may cause electric shock, explosion or fire.

• Follow any indications to turn off the product in places where its use is forbidden. Not doing so may cause other equipment to malfunction due to the effect of electromagnetic waves and even result in accidents.

Caution

Denotes the risk of injury.

• Do not touch any parts inside the product. This may cause injury.

• Avoid using, placing, or storing the product in the following places:

  • Places subject to direct sunlight
  • Places subject to temperatures above 40 °C
  • Humid or dusty places
  • Places subject to strong vibration

This may cause overheating of or damage to the printer or adapter, which may result in electric shock, burns or other injury, or fire. High temperature may deform the product or adapters.

Caution

Denotes the possibility of property damage.

• Unplug the product from the power outlet when you are not using it.

• Do not place anything, such as cloth, on top of the product while in use.

Leaving the product plugged in for a long period of time may cause it to overheat and distort, resulting in fire.

• Never reuse paper for printing, even if most of the paper is blank. Reusing paper may damage the printer if paper jams or the ink sheet adheres to the paper.

• Do not unplug the printer while it is printing. If you accidentally turn the printer off while printing, restart it and wait until the paper is ejected. If paper jams and cannot be removed, contact the KRUU Customer Support. Do not attempt to remove jammed paper by force, which may damage the printer.

• Do not use the printer near motors or other devices that generate strong magnetic fields, near TVs or radios, or in dusty environments. This may damage the printer or cause malfunction.

• Do not raise the monitor excessively. The screen can be raised to about 45°. Attempting to raise it further may damage it.

6. Help videos

Canon Selphy – printer: Insert paper sheets

To view this video, you must allow the setting of cookies.

Canon Selphy – printer: Insert / change colour ribbon

To view this video, you must allow the setting of cookies.

Canon Selphy – printer: Insert paper sheets correctly

To view this video, you must allow the setting of cookies.

Canon Selphy – printer: Paper cassette missing

To view this video, you must allow the setting of cookies.

Canon Selphy – printer: Colour ribbon incorrectly inserted

To view this video, you must allow the setting of cookies.

Canon Selphy – printer: Insert new colour ribbon

To view this video, you must allow the setting of cookies.

Canon Selphy printer: Reset

To view this video, you must allow the setting of cookies.
